Adding Aerial Imagery as SOAP to ArcGIS Pro

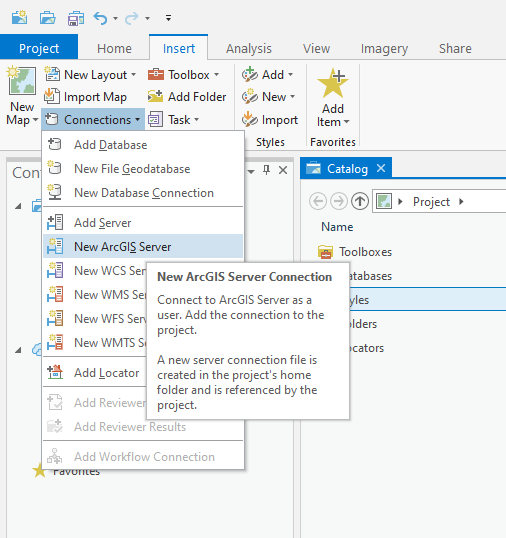

1. Navigate to Insert > Connections > New ArcGIS Server.

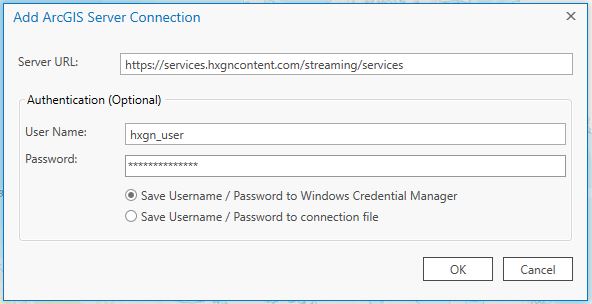

2. The Add ArcGIS Server Connection window will open.

In the URL field, add the URL: https://services.hxgncontent.com/streaming/services

Under the Authentication (Optional) section, fill in your username and password. If you want ArcGIS Pro to remember your password, select either “Save Username / Password” option. Click on “OK.”

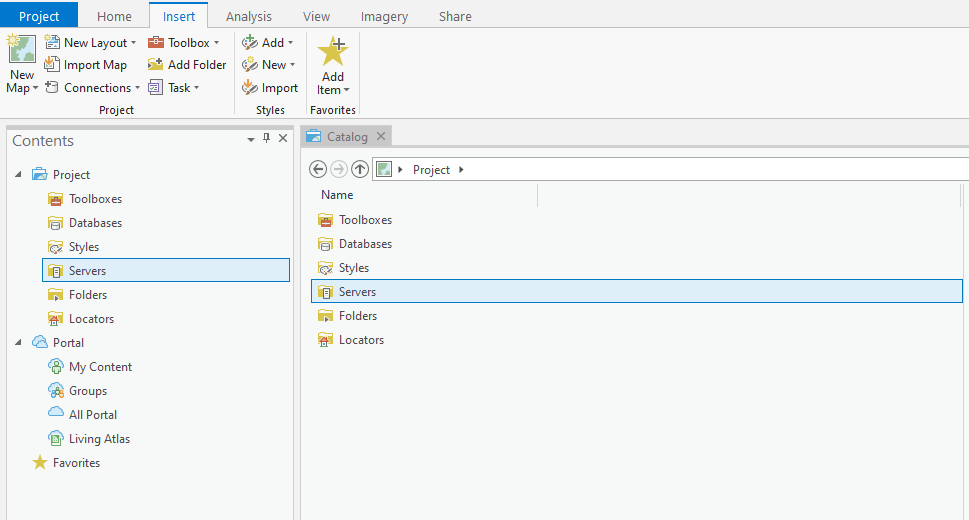

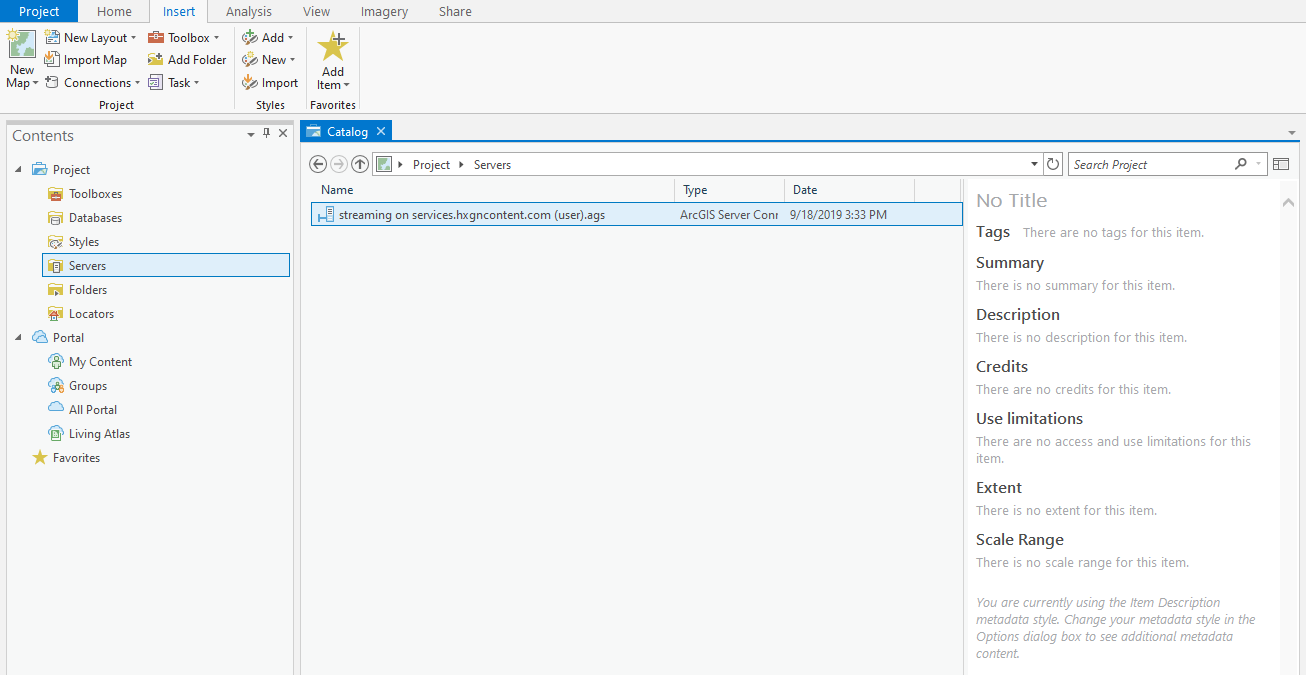

The connection to the streaming service has been made and is shown in the Catalog window under the Servers folder. Double-click on “Servers” to see the connection to the HxGN Content Program.

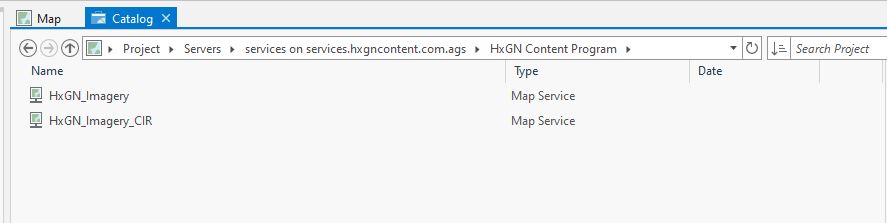

3. Double-click on Hexagon Content Program Cached or Rendered to view your subscribed data layers.

4. Right-click on the layer you wish to add, and click on “Add to New” and then click on “Map.”
