Prioritizing Imagery
By default, the HxGN_Imagery layer is prioritized by date, resolution and band. This can be changed within the WMS protocol using the styles functionality.
Priority | Styles | Comments |
|---|---|---|
Date, Resolution, Band | STYLES=DRB | Default |
Resolution, Date, Band | STYLES=RDB | |
Band, Date, Resolution | STYLES=BRD | All data within the HxGN_Imagery layer is RGBN and equally prioritized. |
Example 1: A WMS request prioritizing resolution
https://services.hxgncontent.com/streaming/wms?SERVICE=WMS&VERSION=1.1.1&REQUEST=GetMap&SRS=EPSG:4326&BBOX=-105.83464907545509,41.488263978414231,-105.81023512956912,41.502357630134398&WIDTH=1514&HEIGHT=874&LAYERS=HxGN_Imagery&STYLES=RDB&EXCEPTIONS=application/vnd.ogc.se_xml&FORMAT=image/png&BGCOLOR=0xFEFFFF&TRANSPARENT=TRUE&
Example 2: ArcMap prioritizing resolution
Add a WMS connection (Adding Aerial Imagery as WMS to ArcMap )
Add the HxGN_Imagery layer to your map

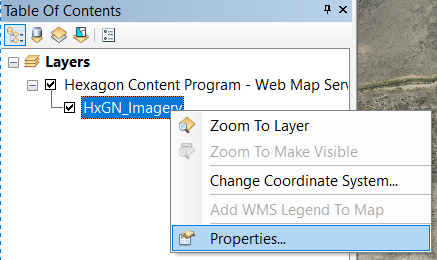

Right-click on the HxGN_Imagery layer and select “Properties.”

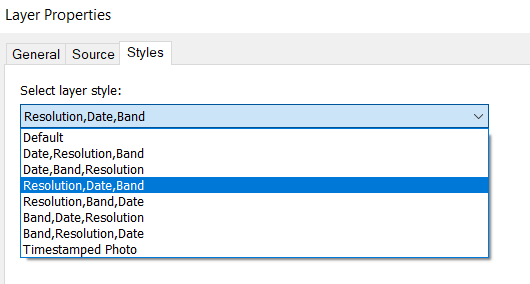

Under the Styles tab, select the drop-down menu and choose your desired layer style.
